Description
High performance mowing with Clear Cut™ cutting deck

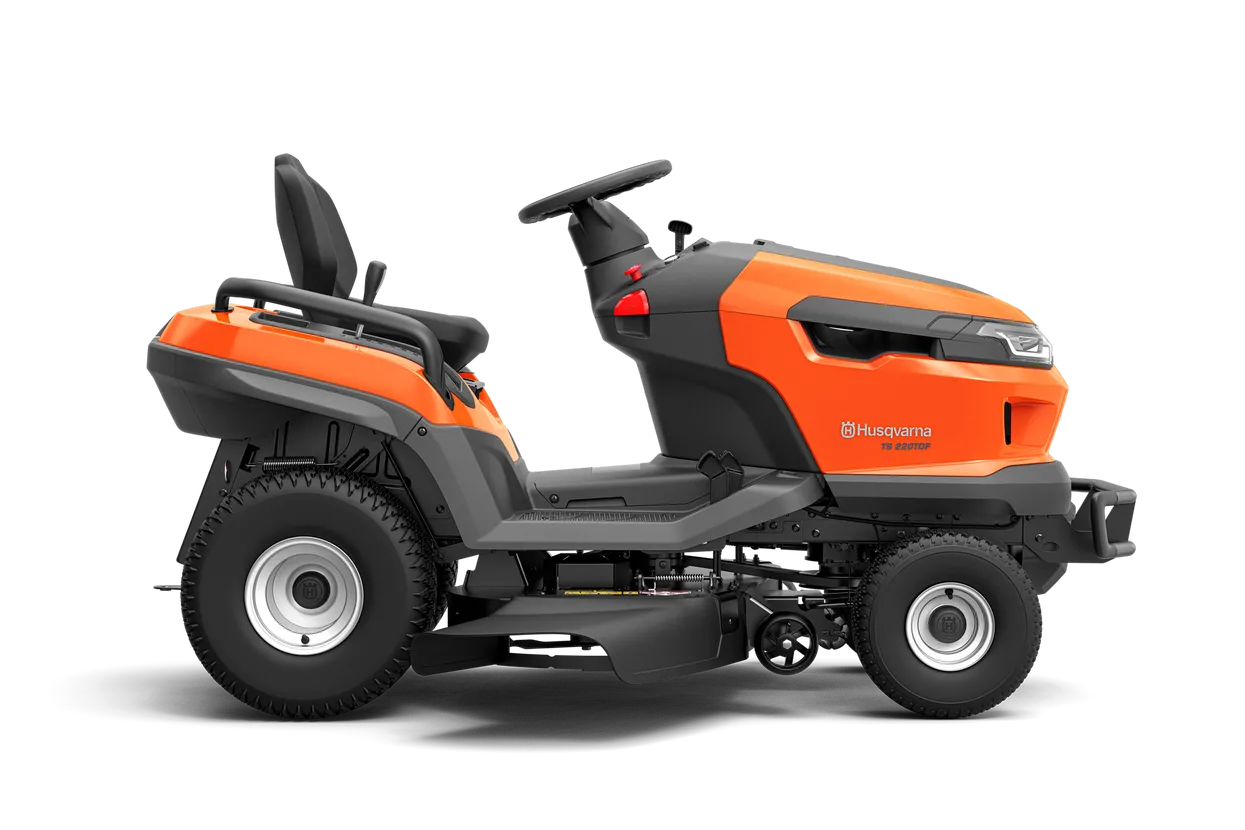

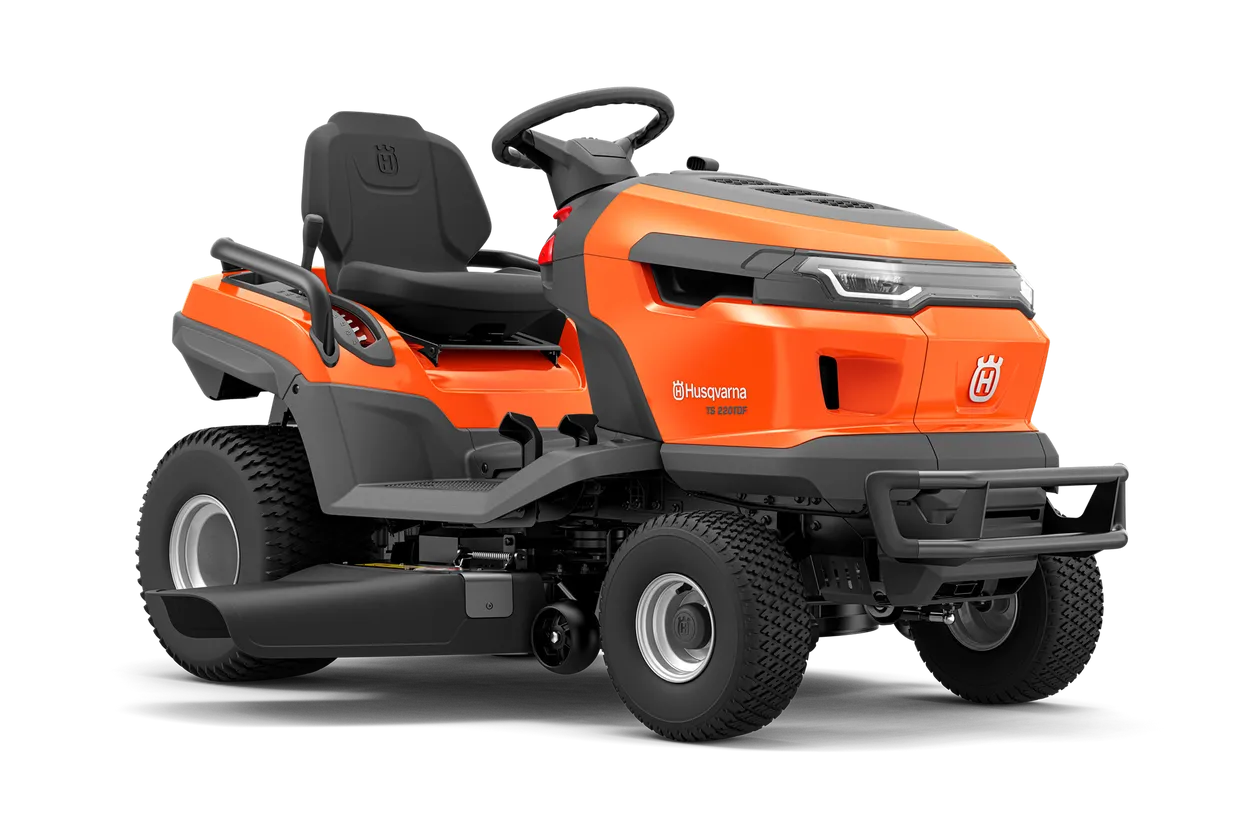

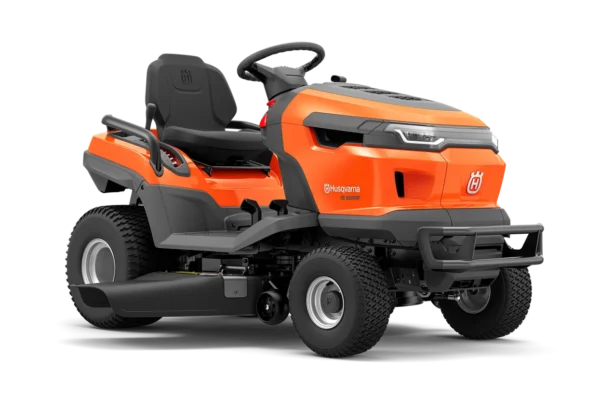

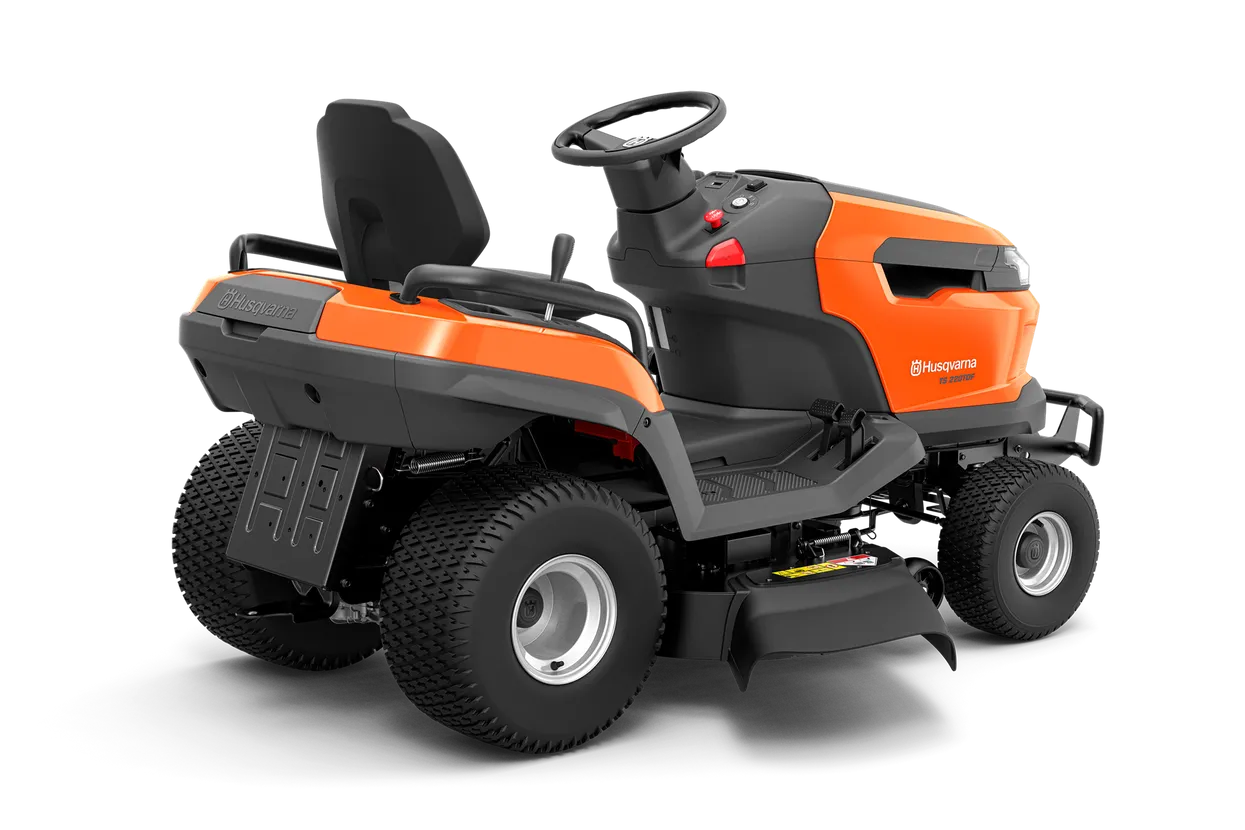

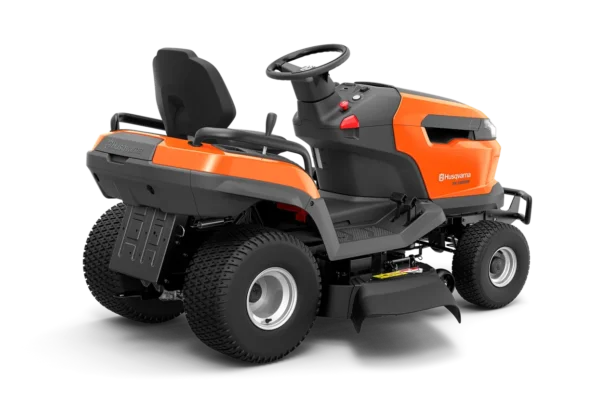

Husqvarna TS 220TDF garden tractor offers comfort-enhancing features and efficient cutting to make the maintenance of large lawns a pleasant experience. Easy-to-reach controls and levers, quickly adjusted seat, and handles contribute to high comfort and good ergonomics. So does the cruise control that lets you rest your foot when mowing large unobstructed areas. The 108 cm specially-designed Clear Cut™ cutting deck is built for superior performance and excellent cutting results, and with a wide range of cutting heights, adjustments can be made to suit different needs and grass conditions. The adjustment is spring assisted to reduce strain for operator. TS 220TDF also features anti-spin transmission, providing improved traction that facilitates driving in hilly terrain.
Engine features like auto choke, oil filter and twin cylinder, and robust design with cast iron front axles ensure reliable and durable performance. ROS (reverse operation system) is activated with the start key for quick access to reverse mowing, and to minimise the risk of the function being used unintentionally. There is also a brush guard to protect the front.
| Cutting deck |
AU, NZ
Art no: 970 74 06‑01
|
|---|---|
Cutting width |
108 cm |
Cutting height max |
105 mm |
Cutting height min |
25 mm |
| Drive system | |
Drive method |
Dual pedal-operation |
Speed forward max |
10 km/h |
Speed reverse max |
6 km/h |
| Engine | |
Cylinder displacement |
764 cm³ |
Engine brand |
Husqvarna |
Motor/engine manufacturer |
Husqvarna |
Engine name |
HV 764AE |
Cylinders |
2 |
Power/fuel type |
Petrol |
Oil filter |
Yes |
| Equipment | |
Seat material |
PU |
Front-End Protection |
Brush Guard Style Bumper |
Hour meter type |
Digital |
Seat back height |
Medium |
Steering wheel type |
Ergonomic – soft grip |
Collector |
Available as accessory |
| Transmission | |
Transmission type |
Hydrostatic |
Transmission manufacturer |
Tuff Torq |
| Emission | |
Exhaust emissions (CO₂ EU V)1 |
806 g/kWh |
